Guillotines

5560 LT

€19.486,00

incl. 19% VAT.

Equipment

Find a dealer

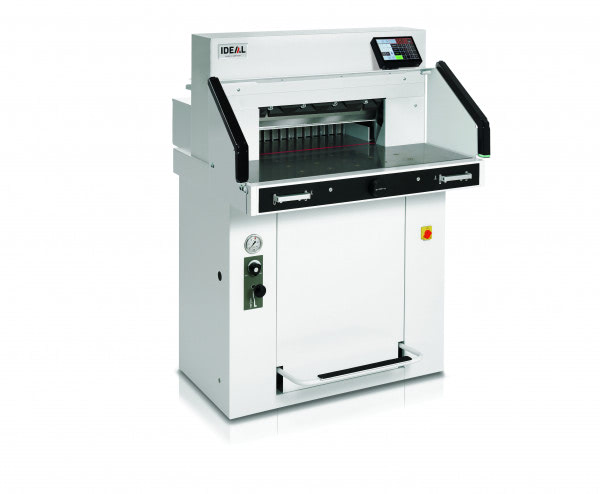

IDEAL 5560 LT, hydraulic guillotine with EASY-CUT, 550 mm cutting length, IR light barrier, touchpad and air table - Made in Germany.

Highlights

With air table at the front and rear for effortless handling of heavy stacks
Hydraulic guillotine for formats up to DIN A3+ with 550 mm cutting length
Hydraulic precision drive for blade and press beam
EASY-CUT two-hand operation with safe cut release
IR safety light barrier on the front table for optimum protection
Electric back gauge with 7" touchpad and 99 storable programs
Electronic handwheel for manual fine adjustment in 1/10 mm increments
Infinitely adjustable pressing pressure with pressure gauge display
Blade changing device with covered cutting edge - safe and tool-free
Sturdy cast frame and durable all-metal construction
Optical LED cutting indicator and LED table lighting in three levels
Made in Germany - easy to maintain, durable and future-proof

Description

The IDEAL 5560 LT is a professional hydraulic guillotine for the highest demands - equipped with air tables on the front and rear for particularly comfortable and gentle material handling. The generous cutting length of 550 mm and the robust construction make this model the ideal solution for print shops, postpress and high volume in-house printing areas.

The air table significantly reduces friction when moving heavy stacks of paper and makes positioning on the cutting table easier - a noticeable advantage for productive work. The tried-and-tested EASY-CUT cutting release allows safe two-handed operation. The blade and pressure bar are driven hydraulically, the pressure can be adjusted continuously and read off precisely via a pressure gauge. A foot pedal supports pre-pressing or serves as a cutting indicator.

The machine is operated via a 7" touchpad with a multilingual interface. Up to 99 programs with 99 steps each can be saved here - including chain dimension function, direct input and EJECT function. An integrated calculator and fixed dimension memory for DIN formats support efficiency. The electronic handwheel enables sensitive manual adjustment of the backgauge in 1/10 mm increments.

Safety is a top priority: An IR light barrier on the front table, the closed rear table cover, a blade stop, 24-volt control and tool-free blade change with covered cutting edge are all part of the comprehensive SCS - Safety Cutting System. The system is complemented by an optical LED cutting indicator, LED table lighting and machine self-diagnosis.

Manufactured in Germany, the IDEAL 5560 LT impresses with its solid all-metal construction, durability and ease of repair - a well thought-out solution for continuous professional use.

Specifications

Model: 5560 LT
Order number: 55604111
Dimensions: 1370 x 1070 x 1400 mm (H x W x D), width with additional tables 1630 mm
Weight: 360 kg, 377 kg with additional tables
Cutting length: 550 mm
Cutting height: 95 mm, 92 mm with pressure bar cover
Residual cut: 32 mm, 60 mm with press bar cover
Insertion depth: 570 mm
Table dimensions: 460 mm front table depth, 430 mm usable
Clamping: Automatic clamp
Press pressure: 200 - 1100 daN
Backgauge: electric
Side stop: rear left and right
Blade drive: hydraulic
Controls: 7 inch touchpad
Connected loads: 230 V / 50 Hz / 1.5 kW

Downloads

Operating instructions

Shipping and payment

Free shipping:
for orders over €50.00

Shipping options:
via GLS parcel shipping for € 5.95

Payment methods:
Visa, Mastercard, American Express, Maestro, UnionPay, Klarna, PayPal, Shop Pay, Apple Pay, Google Pay

Quality from Germany

Long-term repairable

Sustainable product

More details

Im großen Lager einer Druckerei stehen etliche, in Folie eingeschweißte, aufeinander gestapelte Paletten mit Druckpapier und Druckbögen. Im Vordergrund ein Stapelschneider IDEAL 5560 mit Bedien-Touchpad und Lichtschranke. Der Raum ist durch die Deckenbeleuchtung gut ausgeleuchtet.

The perfect choice for getting started with professional cutting technology.

Detailed view of an IDEAL 5560 LT stack cutter. The ir safety light barrier can be seen on the left. You can also see part of the metal machine table with the air nozzles of the air table, the view leads to the backgauge - and an EASY CUT cut release button.

Safety and efficiency combined.

A standard light barrier in the working area ensures safe, efficient and professional work. This technology not only protects the operator, but also enables a smooth workflow.

Detail of an IDEAL stack cutter. The model shown is the IDEAL 5560-LT. Photographed diagonally from above. A transparent safety hood is visible at the top. Two hands operate the EASY-CUT two-hand cut release buttons.

Precision and safety in a double pack.

With the patented EASY-CUT two-hand cutting release, you can control the blade and pressure bar of the guillotine safely and conveniently. These controls allow both components to be moved independently or synchronously, giving you maximum flexibility and control when cutting. This technology not only ensures precise cuts, but also maximum operating safety.

Detailed view of an IDEAL 5560 LT stack cutter with air table nozzles. The optical LED cutting indicator can be seen: A white stack of paper lies on a metal surface, above it is the blade guillotine, a red line of sight runs along the stack of paper.

Precision that shines.

The optical cutting indicator with bright LEDs projects the exact cutting line onto the material, enabling precise cutting according to cutting markings. This function ensures maximum accuracy and efficiency with every cut.

Szenenbild aus dem Video zum Schnittvorgang des elektrischen Stapelschneiders IDEAL 5560: Nahaufnahme des großen 7-Zoll-Touchpads, auf dem eine Hand gerade ein Maß eingibt.

Intuitive control, maximum efficiency.

The modern control module with multilingual 7-inch touchpad enables simple and precise operation of the electric back gauge. Save up to 99 programs with 99 steps each and optimize your work processes. For maximum efficiency, repeat accuracy and convenient control!

Close-up of the blade change scene on an IDEAL guillotine. Two hands holding a tool with the guillotineblade.

Safe blade changes made easy.

The clever blade changing device allows blades to be changed quickly and safely - without having to remove any housing parts. The covered blade edge ensures maximum protection. This keeps blade changes simple, safe and efficient so that you can continue working without long interruptions!

Close-up of the front of the IDEAL 5560 LT electric stack cutter. Zoom on a hand that is about to turn the electronic handwheel.

Precision in the blink of an eye.

The electronic handwheel enables manual saddle positioning with infinitely variable progressive control from "fast" to "slow" in 1/10 mm increments. This ensures maximum precision and control when cutting.

Close-up of the machine table of an IDEAL stack cutter IDEAL 5560 LT with air table - you can see gold-colored, round air nozzles and a cut stack of paper.

Effortless positioning thanks to the air table.

The innovative air table makes it much easier to position and move stacks of paper. Air is blown through small openings in the table top, creating an air cushion that minimizes the frictional resistance between the stack of paper and the table surface. This means that even large quantities of paper can be handled effortlessly and comfortably.

Vorschaltbild zum Video des Schneidvorgangs beim programmierbaren Stapelschneider IDEAL THE 56: Der Zoom liegt auf dem Messer, im Hintergrund ist der Rückanschlag-Rechen zu sehen, im Vordergrund auf dem Schneidetisch liegt ein Papierstapel. Das Messer senkt sich präzise und durchschneidet den Stapel in einem Zug.

High precision thanks to quality steel.

For clean, precise cuts: The high-quality blade Made of high-quality knife steel, it ensures maximum precision and durability. Even with intensive use, the cutting performance remains consistently sharp. Perfect for demanding cutting tasks – powerful, reliable, and efficient.
